Legacy OHMS XML files may be converted to AVAnnotate projects using this method.

Image 4:

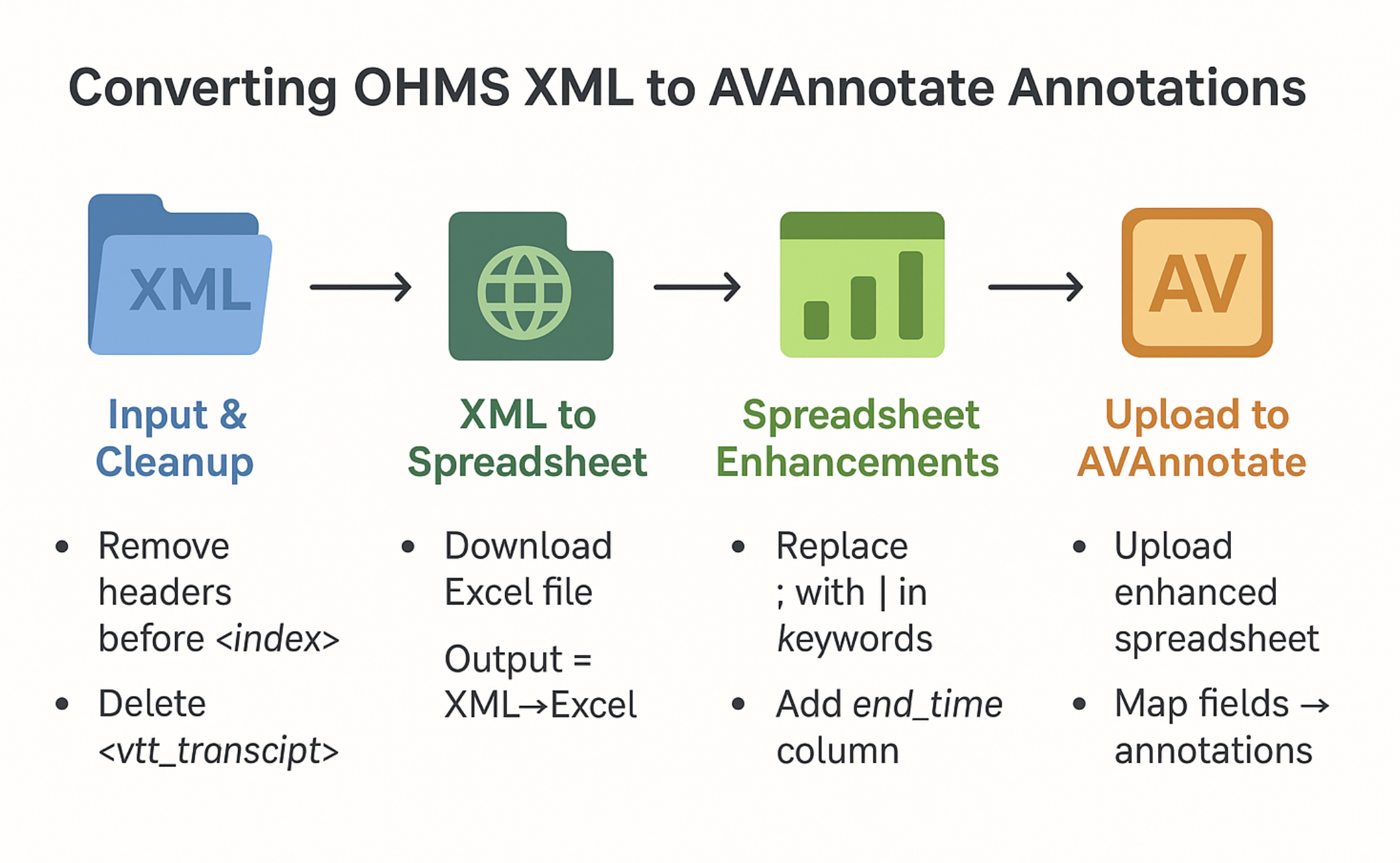

To produce an AVAnnotate project from an OHMS item:

1) Locate OHMS xml file for audio item.

Remove unconvertable material

Some OHMS-XML files contain header information with item-level data which is difficult for commercial converters to handle. This must be removed verfore conversion, or else the converter is likely to produce a single-row spreadsheet unusable for AVAnnotate

2) Use a text editor to delete the following elements from the file: a) All elements between the opening record tag and the index tag beginning timestamped annotations. (This may include version, date, series_id and others.) b) vtt_transcript (at the bottom of the file)

Convert the XML file to a CSV File

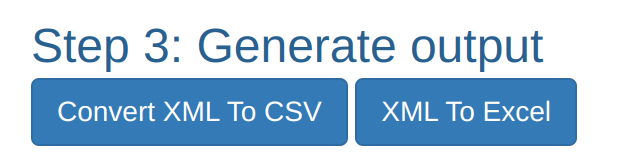

3) Go to: https://www.convertcsv.com/xml-to-csv.htm 4) Upload your OHMS xml file into the field in step 1. Upload the file 5) Skip step 2. 6) In step 3, “Generate output”, Choose “XML to Excel”. This will automatically generate an Excel file for download. Generate the Excel file

Process the spreadsheet

6) Update keyword delimiters If there are keywords in the OHMS file, open the file in Excel, search and replace semicolons (;) with pipes (|) within the “keywords” column and save. (The same may be necessary if using the Subjects field.)

7) Add an end_time column. AVAnnotate requires start and end times for annotations, but many OHMS project only annotate a point in time. Add a new End Time column to the spreadsheet and copy the start time (up-shifted one row) values into it.

Add the spreadsheet to AudiAnnotate

After creating a new project and item in AVAnnotate, upload the OHMS spreadsheet file. Each type of data coming from OHMS will require a separate upload – once for each annotation set from the columns in the spreadsheet. Typically partial transcript, synopsis, and title make appropriate columns to convert into annotation sets. Typical OHMS files use both keywords and subjects. The keywords tend to be more similar to AVAnnotate tags. It is recommended to import that column as tags each time the OHMS spreadsheet is imported.
